A
Adze - An adze is similar to an axe, imagine an axe with its blade at a right angle to its haft (helve or handle). See various types below
- Adze, Carpenters - This adze similar to the standard adze, yet has a square back of the blade, that can be used for striking other object as in a hammer or maul action.
- Adze, Coopers - The coopers adze is held by one hand and has a curved blade, typically used by barrel makers, favored for its small and easy to use weight and size, and for the curved blade.
- Adze, Sculptors - The sculptors adze has a straighter blade quite the opposite of the coopers adze, it as well is used by one hand.
- Adze, Ship Carpenters - This specialty adze has a blade similar to the shape of a garden hoe, and is fitted with a spur on the back of the blade, the spur is used to set large nails or to punch holes or indentations into the wood.
Axe - See various types below:

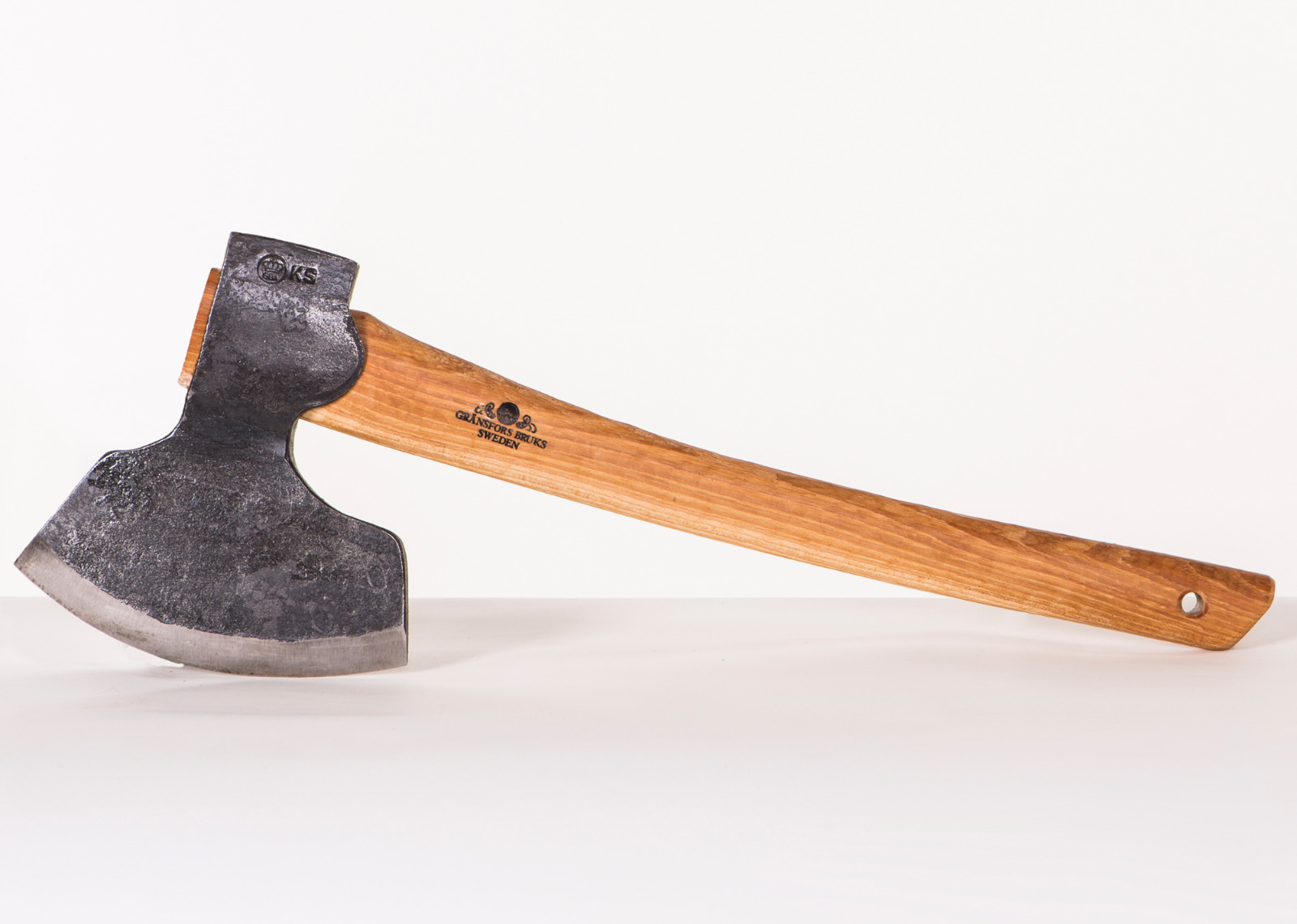

- Broad - The Broad Axe is suitable for squaring logs and planks, for example when building a log house. Broad Axes very greatly depending on the shape of the head and edge and the angle of the handle.1
- Carpenters - Carpenter's Axe or Carpenter's Hatchet is a small axe, usually slightly larger than a hatchet, used in traditional woodwork, joinery and log-building. It has a pronounced beard and finger notch to allow a "choked" grip for precise control. The poll is generally designed for use as a hammer. Newer carpenter's hatchets will often have a groove for pulling nails as well.2
- Carving - The carving axe is the smaller of the other axe types. Used for rough shaping of smaller timbers and logs. The handle of the carving axe is roughly the same length of most hammer handles, and may have a pronounced curve in the handle from the lug of the axe head to the knob of the handle. This type of axe is popular among green woodworkers for it's agility in shaping and even paring down wood for final shaping in skilled hands.
- Felling - Used for cutting down trees, the felling axe has an extremely sharp blade or (bit) with a slightly tapered head. The average head weight of a felling axe is between 2.5 to 3.5 lbs. The tapered head and sharp bit allow for cutting across the wood grain, and deeply with each strike by the user.

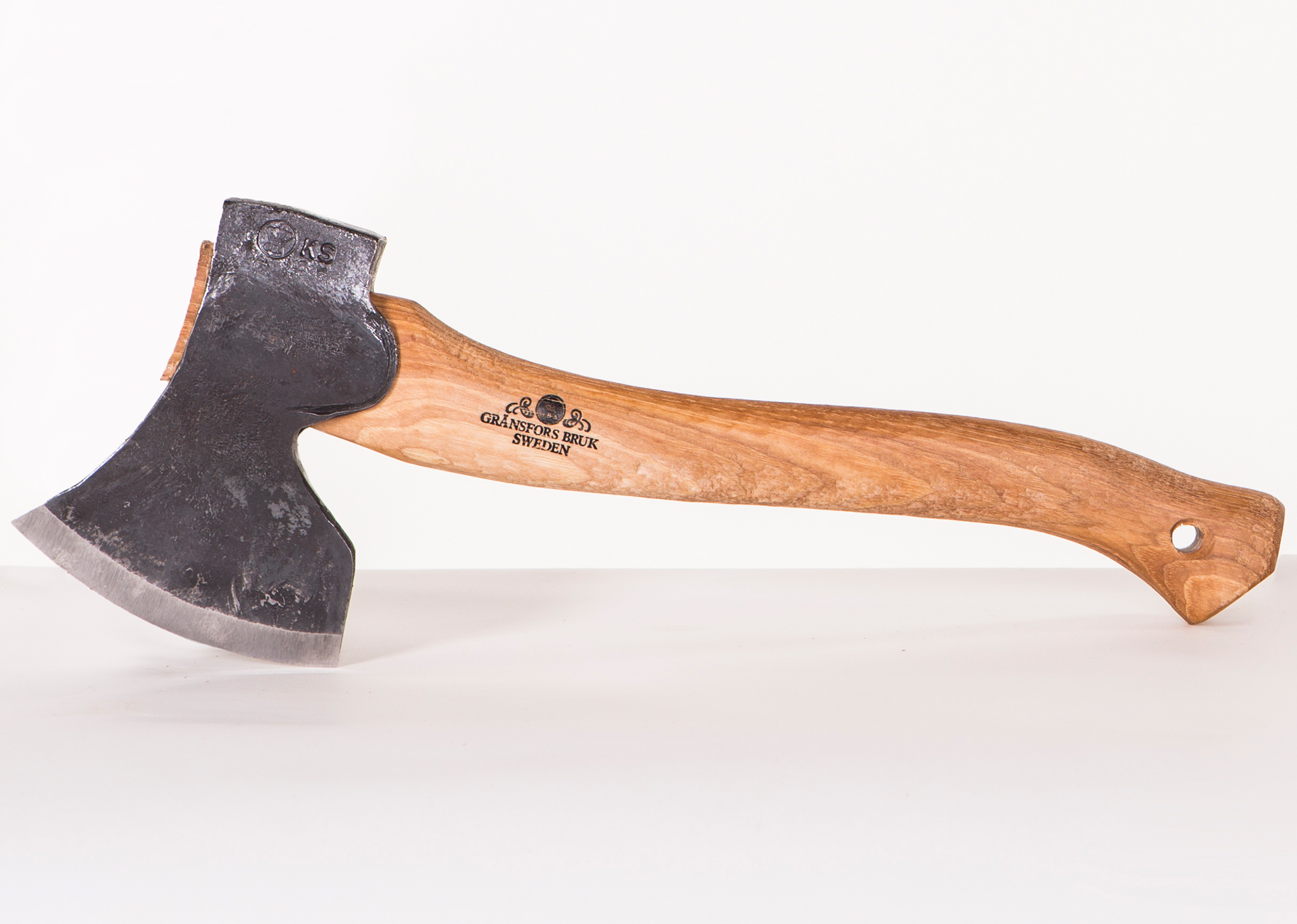

- Hand - To put it shortly, a hand axe is roughly twice the length and weight of a hatchet. The hand axe handle is typically at a 90 degree angle to the head. While the hatchet handle is generally curved. The hand axe is an all purpose axe popular at campsites and for general chopping and size reduction of wood. A true hand axe
- Hatchet - Hatchets are used chiefly by carpenters in shingling and lathing. They have a short handle and can be used both for cutting and nailing.
- Mortising - Used for cutting mortise or tenon joints for log and timber housing and structures.
- Splitting
Awl - A tool used for puncturing a small hole in wood, typically used for a starting guide prior to drilling a hole in the wood. The drill bit will be guided by the small puncture the awl creates.
B

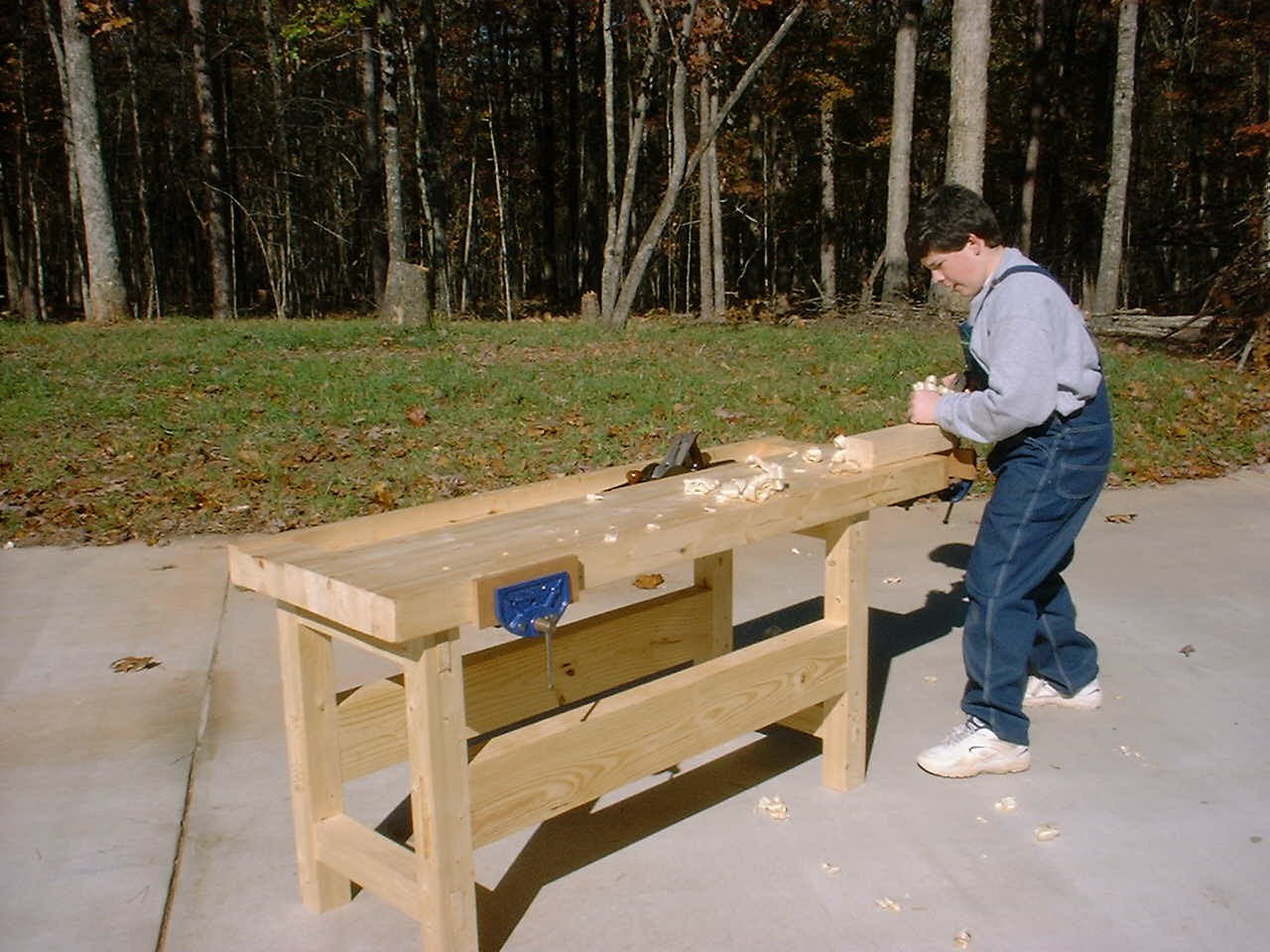

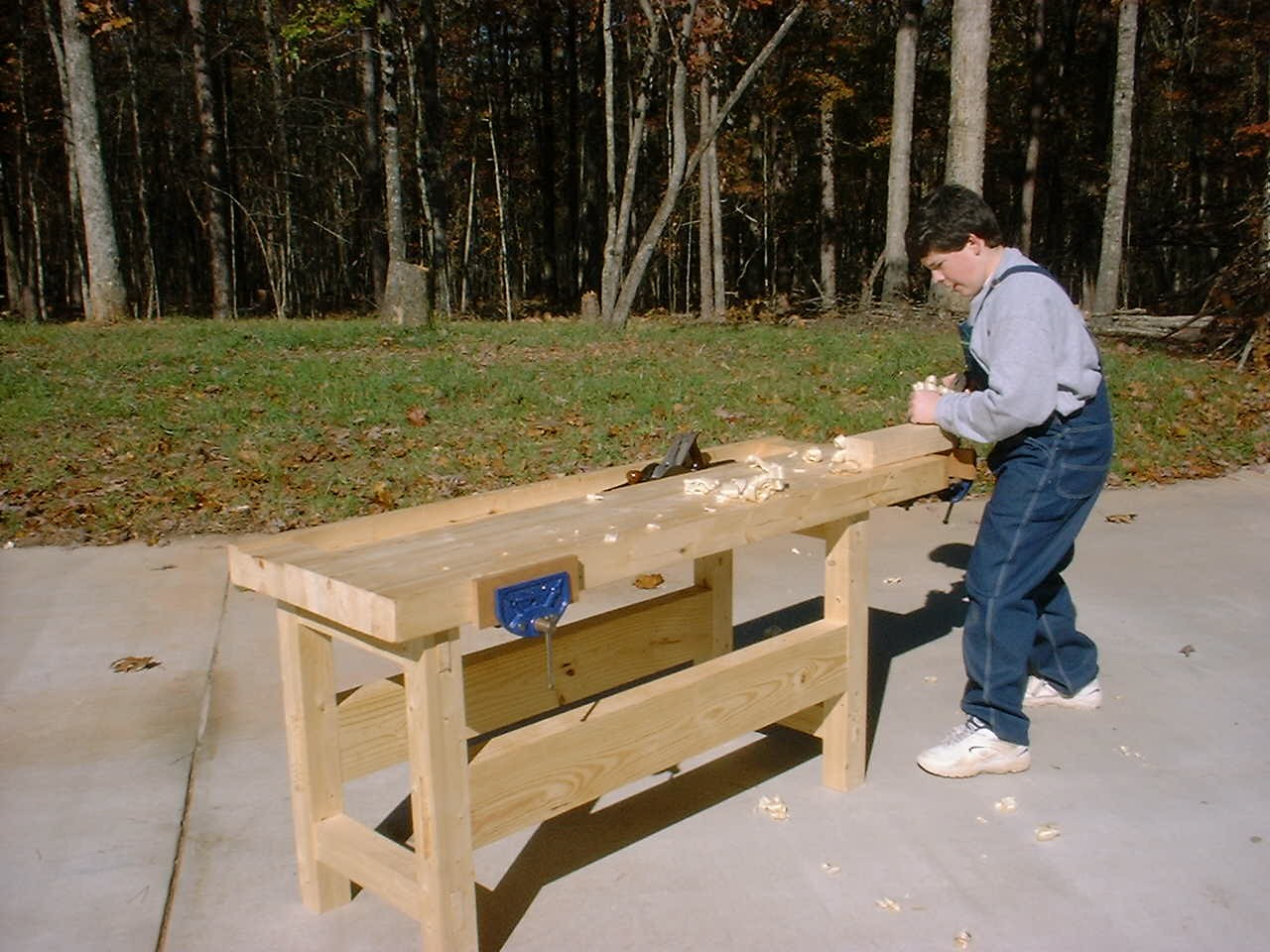

Bench - The bench is a tool or appliance of the utmost importance to the woodworker. The best type of bench has a top that is constructed of narrow strips of hard wood, glued and bolted together. It usually has a recess or trough in which tools may be placed while working. The top is bolted to a frame consisting of four legs braced securely with cross-pieces. This frame is often fitted with one or more drawers.
See various types below.
- Danish -
- European -

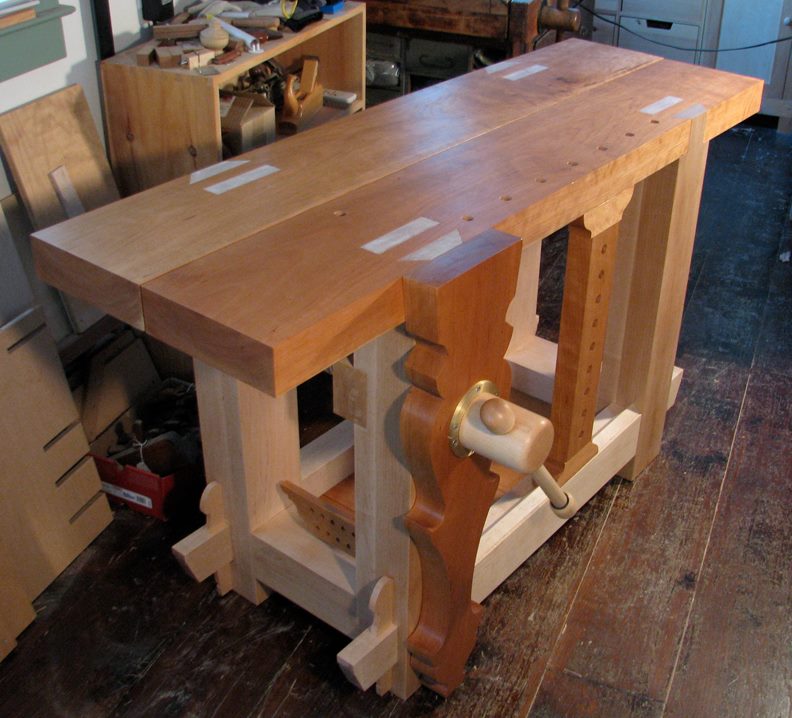

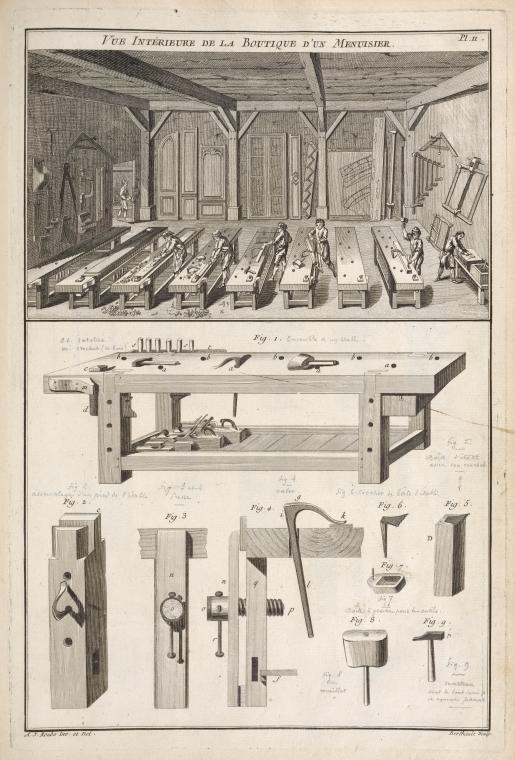

- Roubo - The Roubo workbench is a design created and used by Andre Jacob Roubo who was a carpenter, designer, and author, born and died in Paris, France (1739 - 1791). The bench designed by Roubo has been copied for modern day use and woodworkers use design elements of his bench to incorporate into their own benches. An excellent example of a modern day Roubo Bench by woodworker Kari Hultman.
Brace - See various types below.
- Bit brace extension - A bit-brace extension is a steel rod having a small chuck on one end and a square shank like a bit on the other. A bit, 5/8 in. or more in diameter, is inserted into the chuck of the extension, and this in turn into the chuck of the brace. The smallest hole that can be bored with this tool measures 5/8 in. Bit-brace extensions are made from 12 to 21 in. in length. The smallest hole that can be bored with the larger size measures 3/4 in.
- Plain brace - The plain brace is a tool used for holding a bit securely while boring a hole. At one end the brace has a chuck for clamping the bit, at the other, a knob. The handle of the brace is shaped like a crank.
- Ratchet brace - The ratchet brace is fitted with an attachment which permits boring in places where a complete turn cannot be made. The size of braces is given according to the sweep; i.e., the diameter of the circle that the handle makes in a complete revolution.
Boring - See various types below
- Auger bit - Auger bits are screw shaped tools consisting of two main parts, the twist and the shank. The twist ends in two sharp points, the nibs or spurs, which score the circle, and two cutting edges, the lips, which remove the shavings from within the scored circle. A small screw point, in the center of the cutting end, centers the bit and draws it into the wood.
- Auger bit gauge - Auger-bit gauges of different types can be fastened to auger bits, and adjusted so that only holes of certain depths are bored..
- Dowel bit - Dowel bits are short auger bits 4 1/2 in. long over-all. Ordinary auger bits up to 1 in. diameter are from 7 to 9 in. long over-all.
- Car bit - Car bits and ship augers are auger bits from 18 to 24 in. in length.
- Expansion bit - Expansion bits have a movable cutter, which is adjustable to bore holes of different diameters. Expansion bits are made in two sizes. The largest size has three cutters, and bores holes up to 4 in. in diameter.
- Gimlet bit
- Twist bit - Twist bits are shaped just like the familiar twist drill, except that they have a steeper cutting angle and a square tang. They range in size from 1/16 to 5/8 in. by thirty-seconds. Twist bits can be used for wood only, while twist drills can be used for both wood and metal.
- Forstner bit- Forstner bits have no twist and no spur. They cut with a sharp circular steel rim and two lips within this rim. They bore very accurately, and are especially useful for boring thin wood and for end-wood boring. Their sizes are stamped on the tangs in sixteenths of an inch.
- Brad Awl - The bradawl has the appearance of a small screw driver. It is used for making holes into wood for screws and nails. The hole is produced by forcing the awl into the wood with a twisting motion. It should not be used in thin wood nor too near the edge.
- Rose Countersink - The countersink is a small, cone-shaped tool used for widening the end of holes bored for flat-head screws. One type can be opened and sharpened on an oil-stone.
C
Calipers - See various types below:
- Calipers inside - The inside calipers are used to measure the internal size of an object.
- Calipers outside - The outside calipers are used to measure the external size of an object.
- Dial - Dial calipers are normally used for measuring the thickness of materials and small amounts of movement. They are especially popular for automotive and machining applications. There are two sets of graduations on a dial caliper. The main scale is marked in one-tenth (0.1) inch intervals.
- Digital- Digital calipers measure the outside dimensions of a work-piece or feature. They have adjustable jaws that slide along a beam with an LCD that displays measurements without requiring interpretation.
- Jenny- Fixed point 'Jenny' calipers are specifically designed to locate the center of a round or square section of material, and are also used for marking off a constant distance from an edge. One leg holds an adjustable point and the other leg features a locating lug.
- Spring joint- A caliper having legs fastened together with a spring and pivot at the top joint.
- Vernier- Similar to the Digital caliper except the reading is on a vernier sliding scale instead of a digital read.
Chisel - (See various types below) According to their construction, chisels may be divided into two general classes: tang chisels, in which part of the chisel enters the handle,
and socket chisels, in which the handle enters into a part of the chisel.
- Bevel edge -
- Butt - The butt chisel differs from the others only in that it has a shorter blade and, therefore, can be used in more inaccessible places.
- Carving -
- Corner -
- Dovetail -
- Firmer - The firmer chisel which is said to get its name from the fact that it is firmer or stiffer than the paring-chisel. The firmer-chisel is a general utility tool, being suited for hand pressure or mallet pounding, for paring or for light mortising.
- Flooring -
- Framing - The framing chisel has a very heavy and strong blade, and is used in rough carpentry work and shipbuilding.
- Mortise - The mortise chisel, as its name implies, is used for chiseling mortises. It is, therefore, very thick just below the handle so that it will not break when it is used as a lever in forcing the shavings out of the mortise.
- Paring - The paring chisel, which has a slender blade, is used mainly for hand chiseling. This type of chisel usually is beveled along the sides, so that fine work can be done, such as reeding which requires an extra-thin blade.
- Skew -
- Socket -
- Socket mortise -
- Tang paring -
Clamps - See various types below.
- Steel bar - Steel bar clamps consist of a steel beam or bar fitted with a screw and crank at one end, and a steel head which can be moved along the bar and fastened to it by means of slots cut into its lower edge at short intervals. Steel bar clamps are made in lengths of 2', 2' 6", 3', 4', 5', 6', 7', and 8 ft.
- C - C clamps, or screw clamps, sometimes called "carriage-maker's clamps," consist of a malleable-iron frame, bent in the shape of the letter C, and a steel screw with a swivel tip. They are made in sizes, which, when open, measure from 3 to 12 in.
- Column - Column clamps consist of a steel chain and a right and left screw. They are very useful when gluing together polygons, shaped columns, and any circular work such as the apron for a round table.
- Hand screw - Hand screws are most useful both in clamping up finished work and in holding work under construction. They consist of two jaws made of hard wood and two steel spindles, the end and middle spindles. They are opened or closed by grasping a handle in each hand and revolving the hand screw. The size of a hand screw is indicated by the length of the jaw in inches, the smallest being 6 in. and the largest 18 in.
D
Dividers/Compass - Entry needed
Draw Knife - The drawknife is used for rough cutting, especially on edges, both straight and curved. It is a tool with a long blade whose cutting edge is on the side. At each end of the blade is a handle. The operator grips the handles and draws the knife toward him.
F
Files - See various types below
- Flat -
- Half round -
- Round -

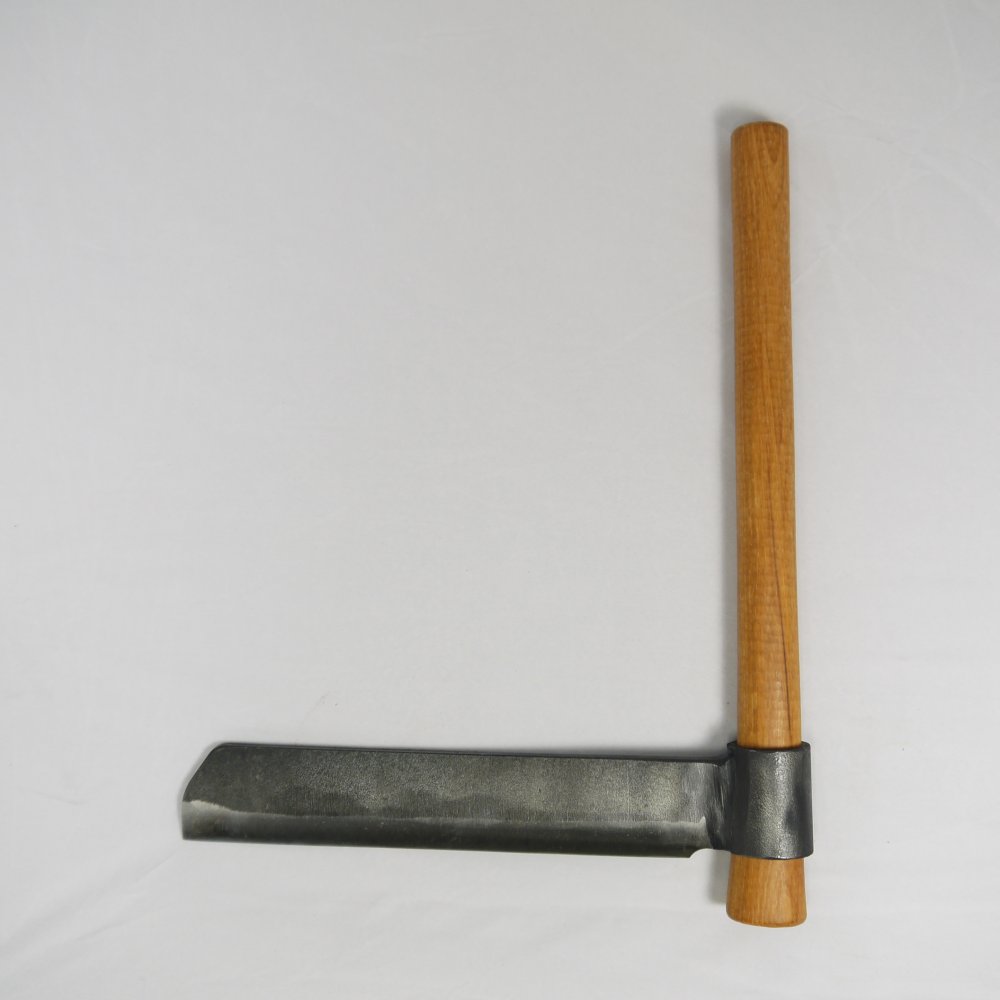

Froe - The Froe is used to split wood very finely, for example when making shingles for a roof. The wood to be split is placed under the edge. The user steadies the tool with one hand on the vertical handle and strikes the blade with a mallet using the other hand.The handle is removable making it easier to transport.
4 A froe (or frow) or shake axe is a tool for cleaving wood by splitting it along the grain. It is an L-shaped tool, used by hammering one edge of its blade into the end of a piece of wood in the direction of the grain, then twisting the blade in the wood by rotating the haft (handle).
H
Hammer - See various types below

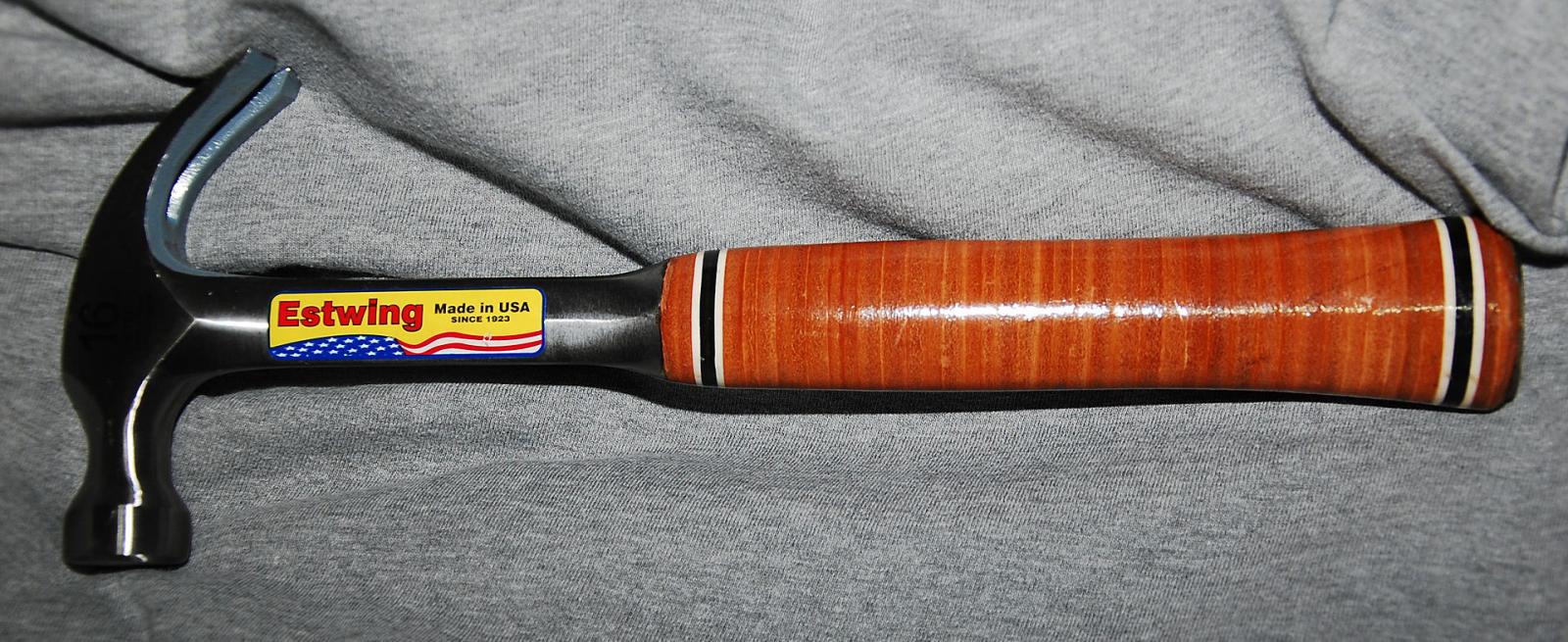

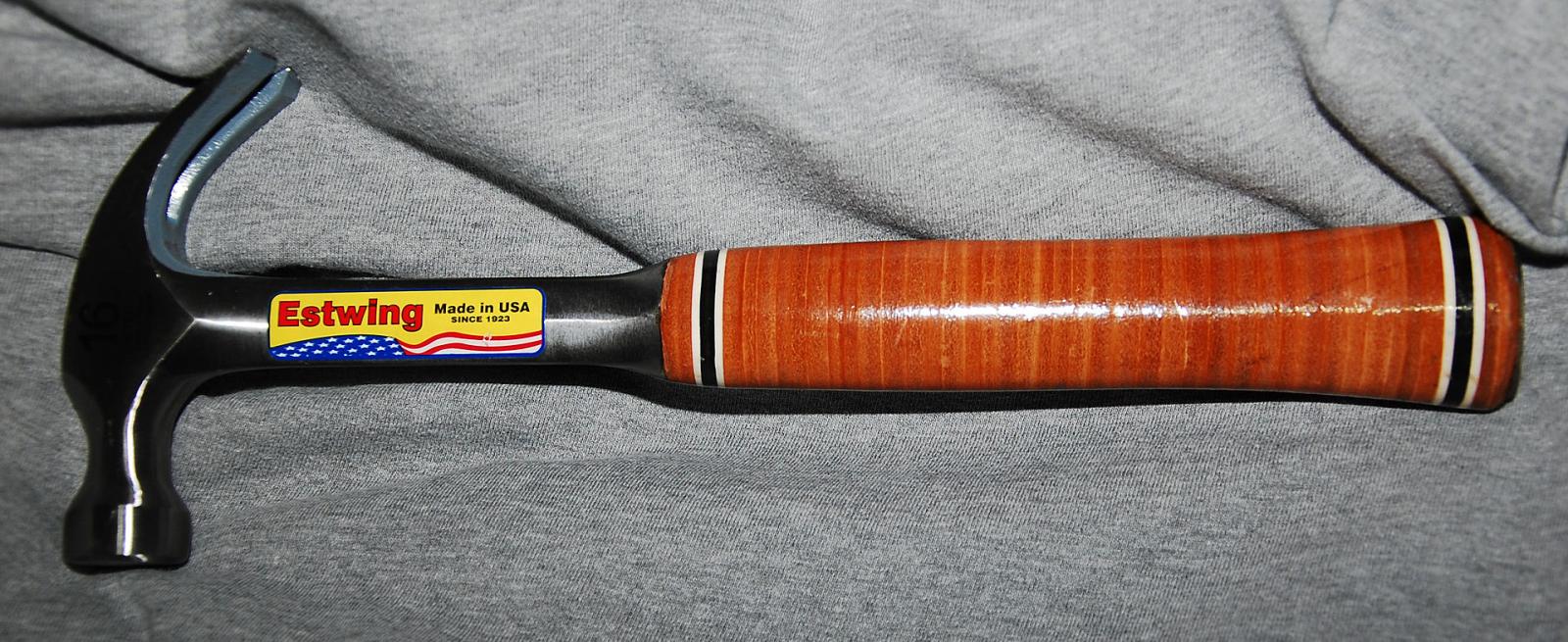

- Claw - The claw hammer is the type of hammer generally used by carpenters and woodworkers. The peen of this hammer is bent and shaped so that it can be used for pulling nails. The face of the hammer often is slightly convex, or bell-faced, so that it will not make a circular mark on the surface of the wood after striking the last blow on the head of a nail. It is important to keep the face of the hammer clean and free from grease or glue, so that it will not glance off the head of a nail and bend it. The size of the hammer is indicated by the weight of the head in pounds and ounces.

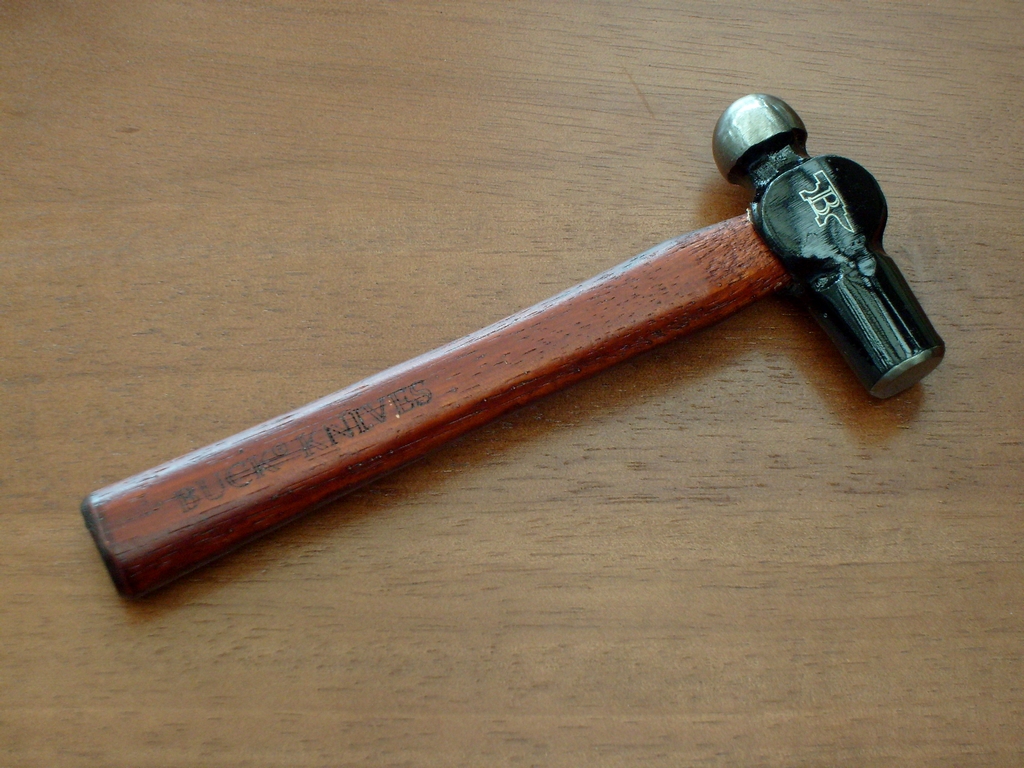

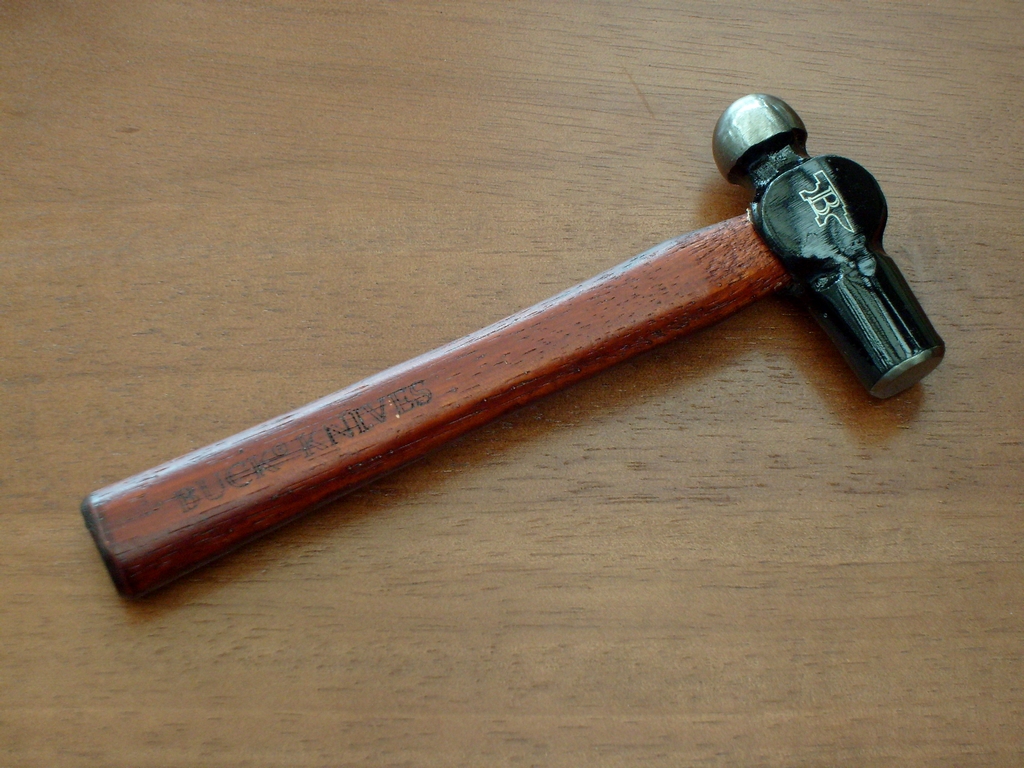

- Ball Pein - A ball-pein hammer, also known as a machinist's hammer, is a type of peening hammer used in metalworking. It is distinguished from a cross-peen hammer, diagonal-peen hammer, point-peen hammer, or chisel-peen hammer by having a hemispherical head. It is commonly used as a tool for metalworking.
- Cross and Straight Pein - These hammers have a wedge-shaped head instead of a ball-shaped head. This wedge shape spreads the metal perpendicular to the edge of the head. The straight-peen hammer has the wedge oriented parallel to the hammer's handle, while the cross-peen hammer's wedge is oriented perpendicular.5
- Club -
- Sledge -
- Joiner's Mallet - Mallets are wooden hammers. As wood is more elastic than iron or steel, a mallet should always be used when driving on wood. The blows of a steel hammer would soon splinter a chisel handle and mar a joint to be driven together beyond repair.
- Soft-faced -
Handsaw - See various types below
- Ripsaw - The ripsaw is used for ripping or cutting with the grain along the straight line. Blades of ripsaws vary in length from 20 to 28 in. They are always wider at the handle than at the end, in order to prevent them from bending or buckling when they are pushed through the wood.
- Crosscut saw - The crosscut saw is similar in shape and appearance to the ripsaw. The only difference lies in the shape of the teeth, which are filed to a point instead of square across as on a ripsaw. The number of points to the inch varies from 8 to 12.
- Backsaw - The backsaw is a crosscut saw wtih a thin blade and fine teeth. A heavy piece of steel fitted over the back of the thin blade prevents it from buckling. The blades of backsaws are from 8 to 18 in. long. Backsaws are used for finer work such as cheek and shoulder cuts on tenons.
- Dovetail saw - The dovetail saw is shaped like a backsaw, but has thinner, narrower blade and finer teeth. The handle of a dovetail saw is shaped like a chisel handle. The length of the blade varies from 6 to 12 in. It is used for extremely fine work such as cutting of dovetails.
- Compass saw - shaped like a ripsaw, but its blade is so narrow that it can cut on curved line. It is particularly useful in cutting a section from within a board or panel. A hole is bored near the line to be cut and the pointed end of the saw inserted into this hole.
- Keyhole saw - is a smaller and finer compass saw.
- Tenon saw - The tenon saw has a higher blade body in the back-saw class of saws. It's stout and firm blade allows deep cuts for joinery and prevents binding in the material. The Tenon saw is often used as a carcass saw.
- Turning saw - consists of a very narrow blade, about 3/16 in. wide, which is held under tension in a frame. It has ripsaw teeth and is used for cutting curves, as the blade usually can be revolved in the frame. It can also be set in the frame so that it cuts either on the pulling or the pushing stroke.
- Hack saw - is not properly a woodworker's tool, but is often a very convenient tool to have in the shop. It has a narrow blade set in a long, narrow metal frame, and is used for cutting metals.
- Coping saw - is a very small turning saw usually having a metal frame. It is used for sawing fretwork patterns and coping moldings.
L
Lathe (human powered) - See various types below
- Spring pole lathe - A reciprocating lathe that uses a springy pole to return the treadle and drive cord to the start position for the power stroke. Usually, the lathe consists of a track or "bed" that carries two movable "puppets" that support conical centers that poke into the ends of the turning wood and define the axis of rotation. The drive cord attaches to the free end of the spring pole, wraps around the work and then down to the foot treadle. The turner cuts the spinning wood on the down-stroke of the treadle and then allows the spring pole to lift it back up.
- Treadle lathe -

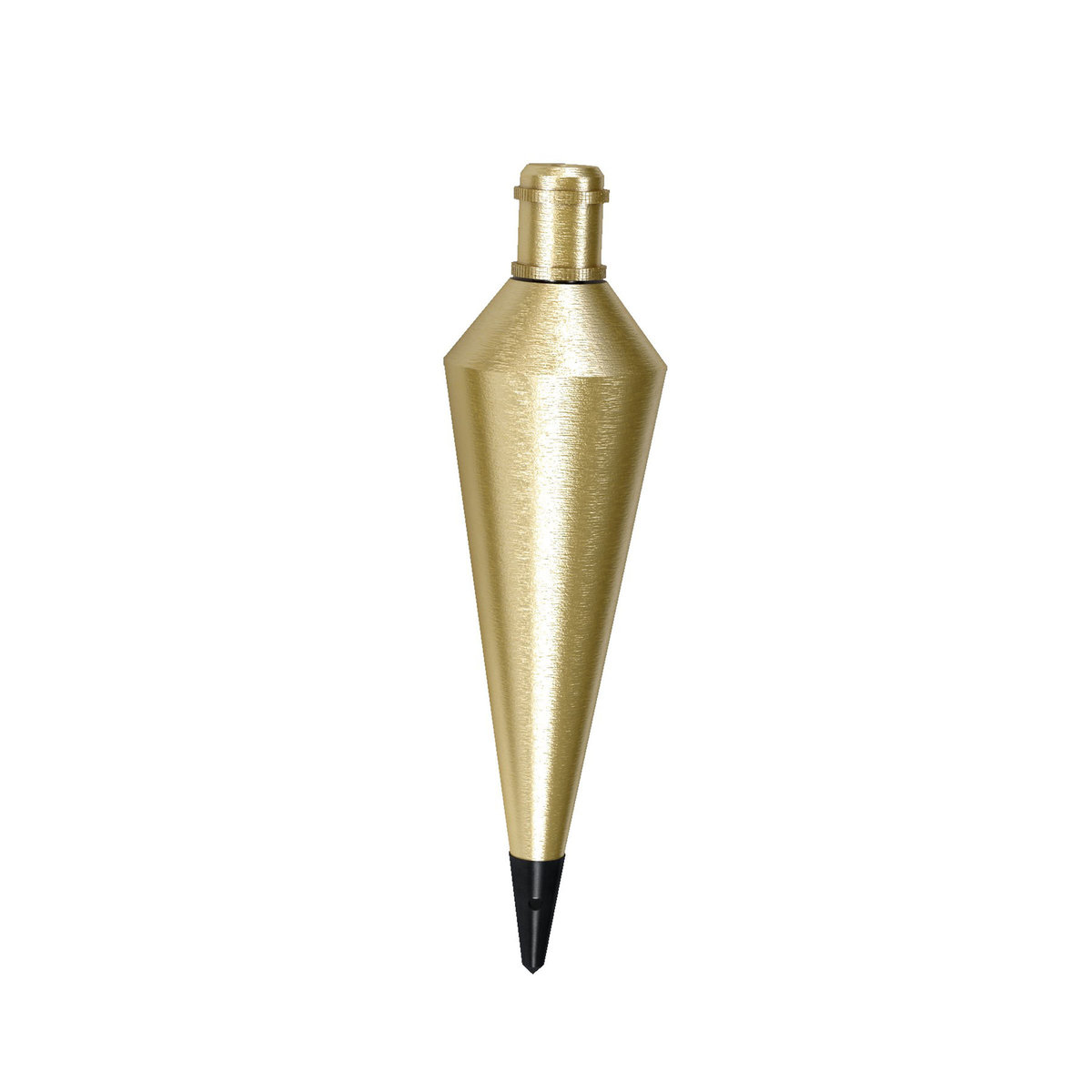

Level - Used for checking vertical surfaces for plumb or horizontal surfaces for level. Typically a straight solid piece of wood or metal, or plastic, with one or multiple vials full of a liquid, and a bubble that will visually indicate if the surface is level or plumb.
M
Marking gauge - See various types below
- Gauge butt - differs from a mortising gauge in that its spurs are at extreme ends of the beams. It can, therefore, be used in internal corners such as door jamb when gauging for the width of the hinges. It is made of steel and has three spurs.
- Gauge marking
- Gauge mortising
- Gauge slitting - is similar to the panel gauge, but has a handle in addition to the block. It has a knife instead of a spur and is used for cutting thin stock.
Measuring tape - Used by carpenters, contractors, and architects. They are made of steel or cloth, and usually measure from 25 to 100 ft. in length. They are divided into inches and feet, or meters and centimeters.
Miter box - Entry needed
Miter and try-square - can be used at both 90 and 45 degrees. Miter squares can only be used for angles of 45 degrees.
N
Nail set - Nail sets are small steel bars about 4 to 5 in. long and 1/4" in diameter. They have a cup-shaped point, and are used to set nails below the surface. The size of the point varies with the size of the nail to be set.
P
Planes - See various types below.
- Jack plane - A jack plane is a general-purpose woodworking bench plane, used for dressing timber down to the correct size in preparation for truing and/or edge jointing. It is usually the first plane used on rough stock, but in exceptional cases can be preceded by the scrub plane.
- Fore plane - The fore plane is built exactly like a jack plane, but is 18 in. long and has a plane iron 2 in. wide.
- Jointer plane - The jointer is also like the jack plane, but is 22 to 24 in. long, and has a plane iron 2 3/8 in. or 2 5/8 in. wide. The latter two planes are used for leveling larger surfaces and for jointing the edges of boards to be glued.
- Smooth plane - The smooth plane is of the same construction as the above named planes, but it is shorter, being from 5 1/2 in. to 10 in. in length.
- Circular plane - The circular plane differs from the others in that it has a flexible bottom 10 in. long, which can be adjusted to either convex or concave curves. It is used on curved work, such as round table tops and aprons.
- Block plane - The block plane is a small plane from 4 to 8 in. long. It has only a single plane iron, which is placed at a very low angle with the beveled side up. The lever cap is generally curved so that it fits smoothly within the hollow of the hand. This plane is used for planing end wood and in places where an ordinary plane could not be used.
- Bullnose plane - The bullnose rabbet plane is about 4 in. long, and has the plane iron fastened to the extreme front of the body.
- Rabbet and Fillister plane - The rabbet and fillister plane is an iron plane used for planing grooves or rabbets on the edges of a board. It has both a depth and a width gauge, as well as a spur, which scores the wood in advance of the plane iron, thereby preventing splitting.
- Dado plane - A dado plane is similar to a rabbet plane, but is used for cutting across the grain.
- Match plane - A matching plane is used for matching boards; i.e., plowing a groove on the edge of one and a tongue on the edge of the other. It has two cutters, a plow and a tongue cutter.
- Router plane - The router plane is used for removing the wood between two sawed or chiseled edges such as dadoes or grooves. The plane iron is lowered after each cut. It is furnished with a 1/4 in., a 2 1/5 in., and a smoothing cutter.
- Universal plane - The universal plane is a very complicated piece of apparatus for planing moldings, dadoes, beads, flutes, etc. It is furnished with as many as 53 different cutters.
- Molding planes - Molding planes are wooden planes, having but one plane iron for one particular type of molding. Wooden planes of all types are still used a great deal, especially by European cabinetmakers and carpenters. The inexperienced worker finds them more difficult to adjust, but they have certain advantages over the iron planes. One of these is lighter weight, which is especially noticeable on jointer planes, and another is that shavings from resinous woods do not stick to their bottoms.
- Plane gauge - Plane gauges are made both for iron and wooden planes. They can be attached to the sides of smooth, jack, fore, or jointer planes, and enable the operator to plane bevels or chamfers of any angle on the edge of a board without the continuous use of a bevel or try-square.
R
Rasps - See various types below
- Wood -
- Metal -
- Ceramic and Glass -
Rifflers - See various types below
- Die sinker -
- Silversmith -
Rule - Rules are made in different lengths and of different materials. Those used by woodworkers are usually of the folding type, and measure from 2 to 8 feet in length. Rules are generally marked off on both sides in inches and subdivisions of an inch, but they are also made with such divisions on one side and metric divisions on the other.
S
Scraper - Scrapers are of two kinds; those sharpened like a plane iron and held in an iron frame or plane body, and those that have square edges and are held in the hand only. The first class is called ''cabinet scrapers" or "scraper planes," and the last type is called "hand scrapers." Hand scrapers having curved edges are called "molding scrapers." Scrapers are used for smoothing a surface after it has been planed.
Cross-grained and highly figured woods must always be scraped.
- Card Scraper - 6 A card scraper is a woodworking shaping and finishing tool. It is used to manually remove small amounts of material and excels in tricky grain areas where hand planes would cause tear out. Card scrapers are most suitable for working with hardwoods, and can be used instead of sandpaper. Scraping produces a cleaner surface than sanding; it does not clog the pores of the wood with dust, and does not leave a fuzz of torn fibers, as even the finest abrasives will do.
Screwdriver- 7
A screwdriver is a tool, manual or powered, for screwing and unscrewing screws. A typical simple screwdriver has a handle and a shaft, ending in a tip the user puts into the screw head before turning the handle. The shaft is usually made of tough steel to resist bending or twisting.
- Phillips - 8 In the early 1930s, the Phillips head screw was invented by Henry Phillips. Automobile manufacturers now used car assembly lines. They needed screws that could take greater torque and could provide tighter fastenings. The Phillips head screw was compatible with the automated screwdrivers used in assembly line.
- Slotted - 8 Around the first century CE, screw-shaped tools became common, however, historians do not know who invented the first. Early screws were made from wood and were used in wine presses, olive oil presses, and for pressing clothes. Metal screws and nuts used to fasten two objects together first appeared in the fifteenth century. The heads on these types of screws have one slot for the driver to engage.
9
The screwdriver, which began to appear regularly on the woodworker's bench after 1800, did not share the long evolution and tradition of other Anglo-American tool designs. The screwdriver in its early versions frequently had a scalloped blade for no other purpose than decoration.

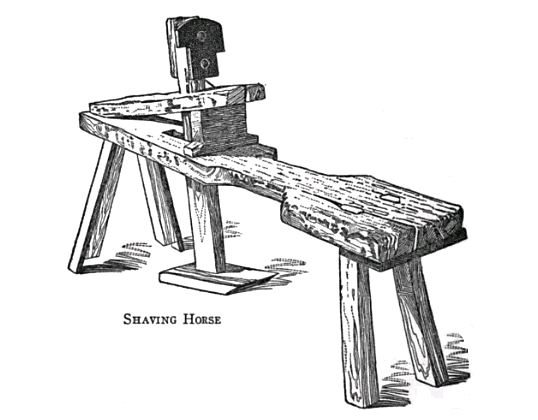

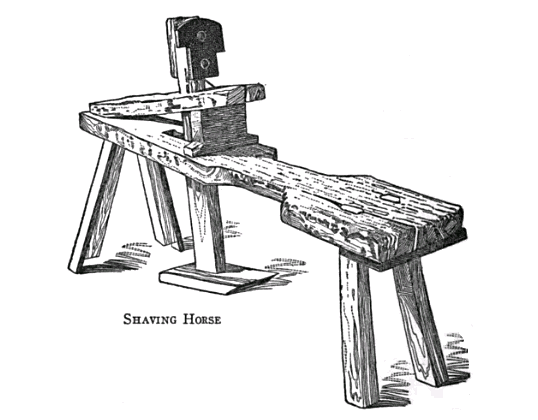

Shave horse - 10 A shaving horse is a combination of vice and workbench, used for green woodworking. Typical usage of the shaving horse is to create a round profile along a square piece, such as for a chair leg or to prepare a work piece for the pole lathe. They are used in crafts such as coopering and bowery.
Sliding T bevel - are similar to try-squares, but differ in that their blades are adjustable to any angle. They are used for laying out angles other than right angles, as for instance, corners braces, dovetails, or side rails for chairs.
Spoke shave - The spokeshave is like a plane with a very short bottom. It is, therefore, suitable for smoothing curves that are too small for a circular spokeshave plane. Spokeshaves are made in many patterns, generally with an iron body. One type, the patternmaker's spokeshave, is
made of wood.
Saw - In woodworking and carpentry, hand saws are used to cut pieces of wood into different shapes. This is usually done in order to join the pieces together. They usually operate by having a series of sharp points of some substance that is harder than the wood being cut. See various types below
- Back saw - A back saw is any saw that that thick metal rib on the opposing edge of the cutting edge. The purpose is to stiffen the blade and to provide better control of the cut.
- Bow saw - A modern bow saw is a metal-framed crosscut saw in the shape of a bow with a coarse wide blade. This type of saw is also known as a Swede saw, Finn saw or bucksaw. It is a rough tool that can be used for cross-cutting branches or firewood, up to six inches (150 mm) in diameter. The name 'Swede saw' probably derived from the ovate metal tubular frame version, invented in the 1920s by the Swedish company Sandvikens Jernverk, and additional patents by two Swedish immigrants to the US. Modern versions all share those common features. 11
- Buck saw -
- Coping saw -
- Cross cut saw -
- Dovetail saw -
- Fret saw -
- Hacksaw -
- Japanese saw -
- Keyhole saw -
- Rip saw -
- Turning saw -
- Veneer saw -
T
Trammel points -
Try-square - Used for testing the squareness of lumber, and in checking the squareness of work being assembled, especially in places where a framing square would be too large. Try-squares consist of two parts, the stock and the blade, which are firmly fastened together at right angles. The stock is thick and made of wood or iron. The blade, which is thin, is made of steel and has an inch scale stamped on it. Try-squares are made in sizes from 4 to 12 in., measured from the end of the blade to the stock.
File References
ID | T | Name | Size | Last modified | |
---|---|---|---|---|---|

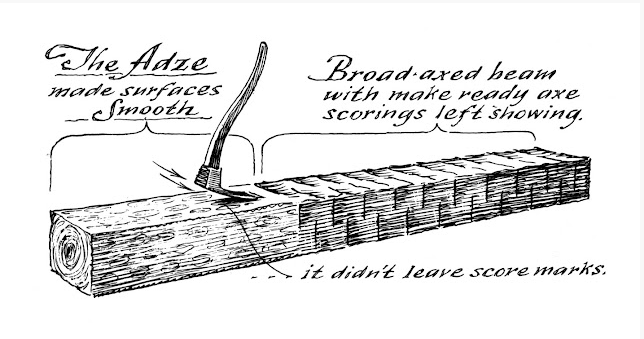

70 | Broad Axe Vs The Adze Illustration by Eric Sloane. Drawing of the proper use of an adze which was to plane down, or make smooth, a timber that was previously hewn with an axe. Reference: “The Broad Axe vs. the Adze.” Handmade Houses... with Noah Bradley, 27 June 2017, https://handmadehouses.com/the-broad-axe-vs-the-adze/. |
150.80 KB | 10-15-2019 | ||

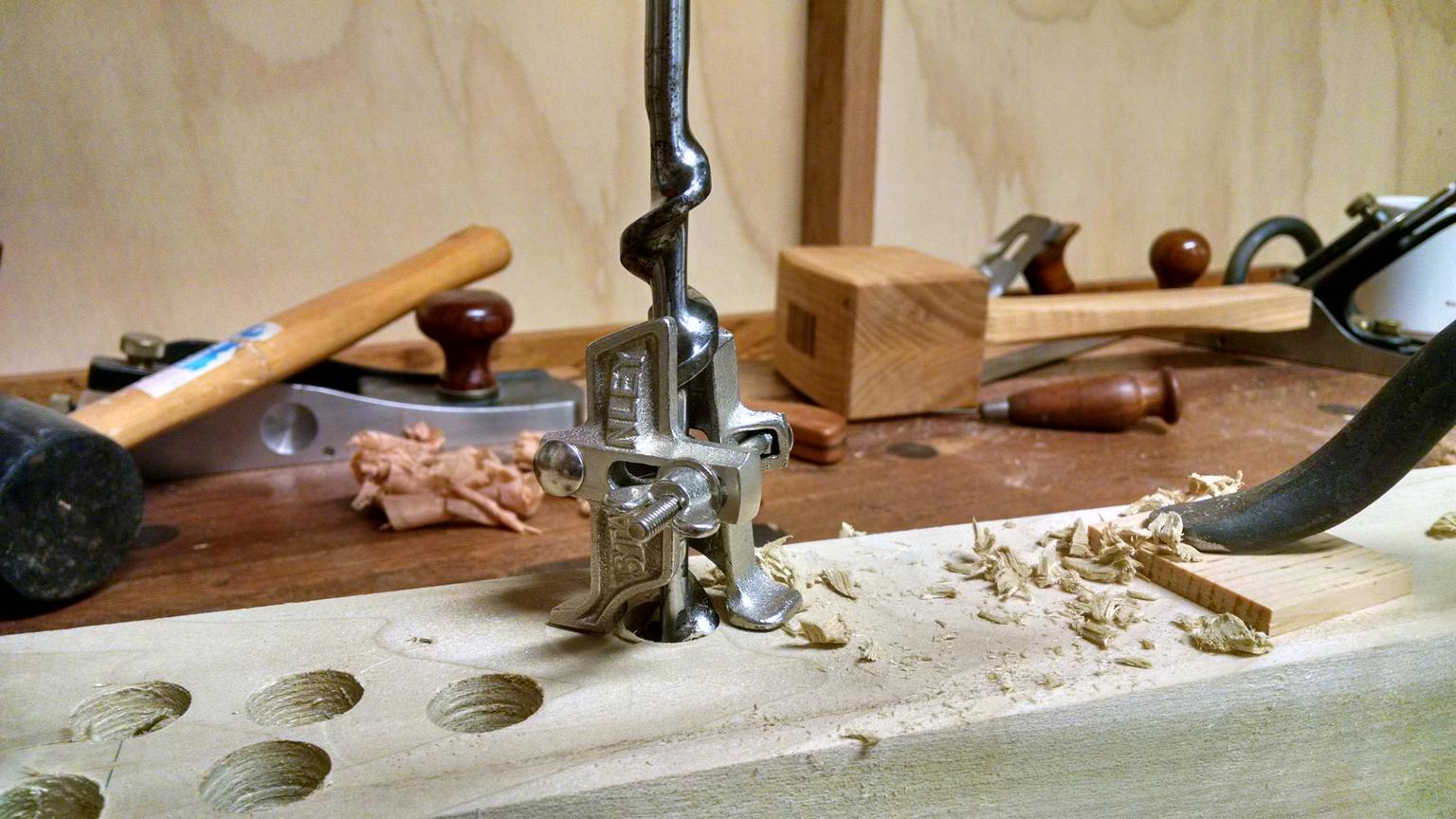

318 | Stanley No. 49 Auger Depth Gauge Stanley No. 49 Auger Depth Gauge, drilling hole with a brace and auger, depth stop is secured to auger bit. Attribution: Image by John Morris Source: https://thepatriotwoodworker.com/gallery/image/2245-stanley-no49/ |
173.66 KB | 01-09-2019 | ||

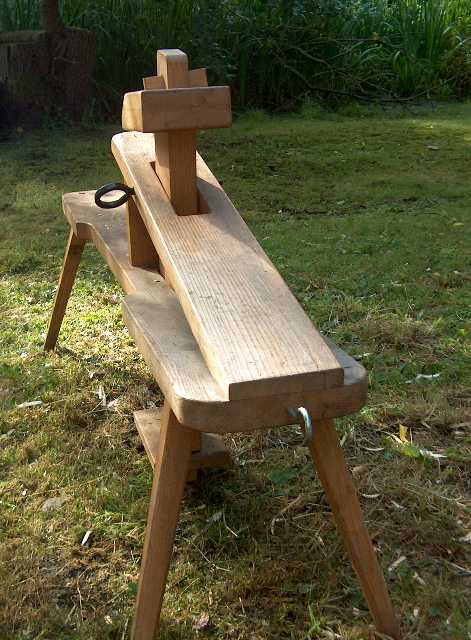

509 | Shaving Horse Shaving horse - used for wood working - also Slojd teaching Attribution: Hchristophersen [CC BY-SA 3.0 (https://creativecommons.org/licenses/by-sa/3.0)] Source: https://commons.wikimedia.org/wiki/File:Shaving_horse.jpg |
49.15 KB | 12-11-2019 | ||

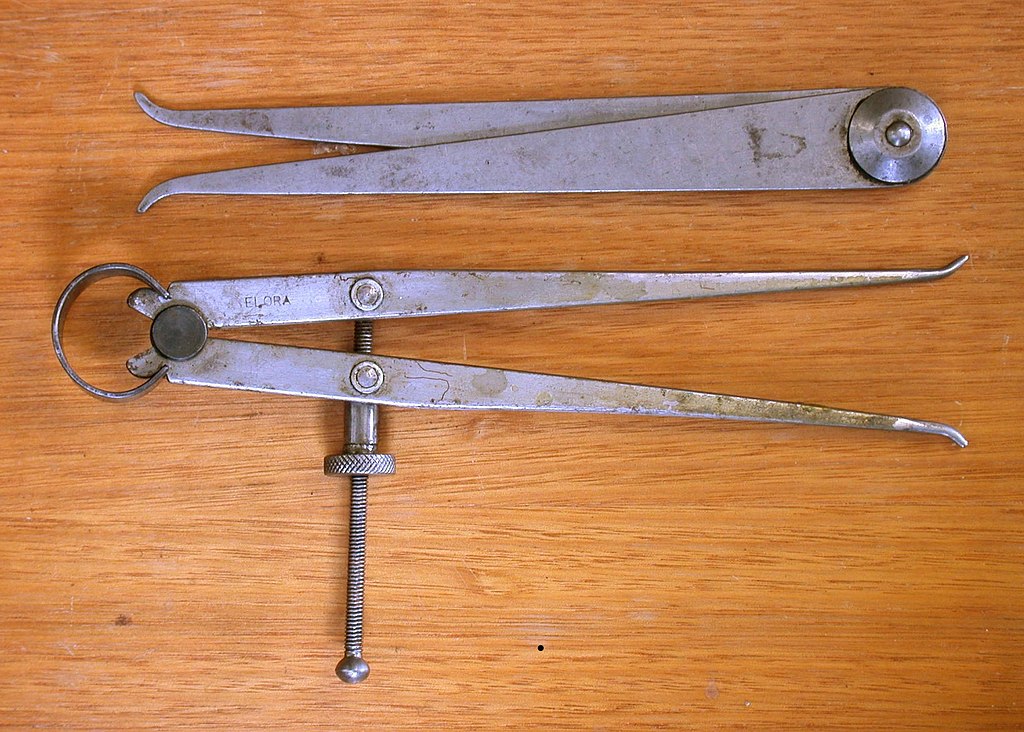

641 | Two Inside Calipers Attribution: Glenn McKechnie, CC BY-SA 3.0 , via Wikimedia Commons Source: https://upload.wikimedia.org/wikipedia/commons/c/c3/InsideCalipers.jpg |
