Froe

Geographical origin:
Primary use: Splitting
Alternative use: Riving
Pronunciation: \ˈfrō \
Category: Hand Tool
Froe


Introduction

1 A froe uses the haft as a lever to multiply the force upon the blade, allowing wood to be torn apart with remarkably little force applied to the haft. By twisting one way or the other the direction of the split may be guided.

A froe is also unlike an axe or maul in that the froe can be placed exactly where the user would like the split to begin. With the exception of users with expert aim, axes and mauls cannot. This technique can be used with enough precision that regularity of measurements can be kept when cutting shingles, ground stakes, or even small rails or planks. Another use is to rive pieces of wood to be used for steam bending, as this wood follows the grain and is less prone to breakage.

Etymology

2 Abbreviation of obsolete frower, from froward (“turned away”), referring to the orientation of the blade, at right angles to the handle. From late 16th century.
1 The origin of the word “froe” is not clear, and some references find it spelled “frow.” One possibility of its roots can be found in the Old English word “fro,” which meant “away,” which was the direction you hammered the “froe” to split the wood.

Pronunciation

/frō/ /froʊ/

History

Add the history of this tool here.

Use(s)

1 Froes are used in combination with wooden mallets to split timber, to make planks, wooden shingles, or kindling; they are safer and more accurate to use than hatchets or splitting mauls because the blade is not swung.

How used

1 A froe (or frow), shake axe or paling knife is a tool for cleaving wood by splitting it along the grain. It is an L-shaped tool, used by hammering one edge of its blade into the end of a piece of wood in the direction of the grain, then twisting the blade in the wood by rotating the haft (handle).

Froes are similar in general form to axes, in that a froe is an L-shaped assembly of a blade head (typically steel) set at a right angle to a handle called a haft (traditionally wood). A froe can be thought of as an axe which is sharpened along the top of a long, narrow, rectangular head, instead of (as the axe is) at the end of a broad curved head. Some froes are made of a single piece of metal with no perpendicular haft. Instead, the handle is the unbeveled end of the blade which extends directly from the blade. These froes must be hammered through the entire piece of wood, as their lack of vertical haft makes it extremely difficult to lever the wood apart. A given froe can split a piece of wood no wider in its narrowest dimension than the length of the froe's blade; that is, when you place the froe, it must cross the surface of the wood completely.

Hitting the narrow blade of a froe repeatedly soon damages a mallet, and so the traditional implement used to hit it is a froe club. This is simply a short length of a thin log, still with the bark on it, with one end reduced with a drawknife to convenient diameter for a handle. It is rotated slightly in the hand with each blow so as to even the wear and, although the club soon wears out, a new one can easily be made.

Gallery

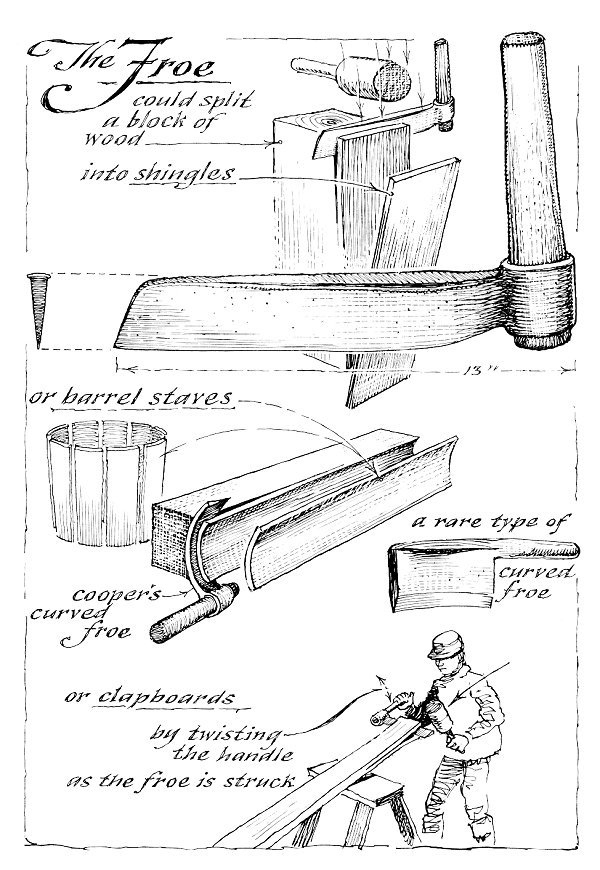

Illustration of a froe from Eric Sloan's "Museum of Early American Tools"
Reference: Poole, John. “Old Memes Never Die.” Hawkins House, 22 May 2010, http://josephhawkins.blogspot.com/search/label/Froe.

Reading

References

1 Wikipedia contributors. "Froe." Wikipedia, The Free Encyclopedia. Wikipedia, The Free Encyclopedia, 18 Oct. 2019. Web. 5 Jan. 2020.
2 "froe." Wiktionary, The Free Dictionary. 26 Oct 2019, 05:29 UTC. 5 Jan 2020, 17:57 <https://en.wiktionary.org/w/index.php?title=froe&oldid=57857100>.
